What to do if your computer doesn’t start!!!!!

PC problem
Computer is now an inseparable part of our life. Sometimes we fall in troubles with our computer. May it be software problems or hardware problems. If it is software problems we some times can solve these problems. But when it is problems related to hardware, We very often go to the expert technician who are excels in hardware.
Today I am gonna show you how you can solve problems when your computer doesn't start. This obviously a hardware problem.
Sometimes it may happens for some certain software. But ten to one it is a hardware problem. This kind of problems may be the following
  • My computer doesn't start/turn on.
  • My computer doesn't take boot.
  • My computer doesn't load operating systems.
  • My computer takes automatically restarts sometimes when working on.
  • My computer becomes hang.
The solutions to these problems: In these tutorial I will show you the process step by steps with what you can solve these problems yourself. But don’t take any steps as silly. Because every steps; may it be small or trifle, are important.

Simple apparatus to maintain your computer:

To open your pc’s hardware functions you should collect the following things for your own.

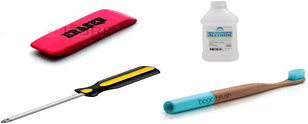

Necessary Tools
  • A screw driver.
  • A rubber which is used by our kids for cleaning handwriting.
  • Isopropyl alcohol/petrol
  • A brush for cleaning purposes.



External Problems Checking:

The first thing you need to do is that Check your PC externally. Don’t try to turn on your computer at this stages. You should follow these steps:
1. Be sure that you power cord is attached to  the wall.
                                                 Power cord socket
2. Secondly Check if the main power cord is firmly attached to the power supply.
                                                 Power cord
3. Check reset switch is not got stuck by casing. If it is,  press reset switch again to be released.
                                                Reset button
4. Remove all outer devices and external cables from your computer so that you can check one by one. Such as Keyboard, mouse, printer, digital camera, iPod etc. as well as all other external devices such as USB devices.  After this step only Power cord and video monitor cord will be attached with computer.
5. check the monitor’s brightness and contrast button are well-functioned. Very often we see that our pc is ok  but for the lack of brightness and contrast button setting correctly, we can not see any display.
6. Check if your monitor power is on or not. If it is off, on it.
After finishing all the steps, now try turning on your computer. Is it working now? Great! If not, let’s see what you should do next……..

Internal Problems checking:

In this stage we will now check some internal problems. Now  open your CPU casing with screw driver. we will need to remove everything that is not necessary for the computer to be turned on. Only the following things are important to turn on the computer.
  • Power supply
  • Motherboard
  • CPU cooler.
  • One memory module
  • One video card
We have to remove the following things such as:
  • All ad-on cards( e.g ad-0n sound cards)
  • Hard disk drives
  • Optical disk drives
  • Memory modules( the second)
  • Second video card
Please make sure your power function is off when you remove these things. After doing this, turn on your computer again. Does it turn on, if it is, Great! you solved the problem. Now you need to  install all the parts on e by one. You have to off power every time you install a part. Then turn on you PC again, and check if your PC is starting. If it starts well it means there is no problem in that part that you installed. If it doesn’t start, it means that this part is faulty or it has a bad contact( Bad contact problems will discussed later). This part must be discarded or eventually replaced. Remember you need to turn your PC off every time you install a parts. Don’t set all the part at a time. In this case you will not be able to find out your PC’s problems.
When you perform the tasks notice the following things very carefully….
  • Is the power supply delivering energy?
  • Is the CPU fan spinning?
  • Does you computer work for some time and shut down? Then it CMOS  memory bad contact problem( it will be discussed later)
  • Can you hear beep sound coming from the small speaker located in the case? If you do, it means that there are bad contact problems in Video card or memory modules. Or they are defective.

Checking Bad contacts Problems :

After completing all the stages stated above. if your  computer doesn’t start , You will need to solve the bad contact problems of your computer. For this you will need Isopropyl alcohol/petrol, Eraser and a tooth-brush.
Now Remove the memory and the video card from the motherboard. Clean the edge contact of memory module and Video card with eraser as you are erasing them. Don’t touch the edge contacts with fingers. After rubbing with eraser, clean the memory module and video card with with the tooth brush wet in Isopropyl alcohol.

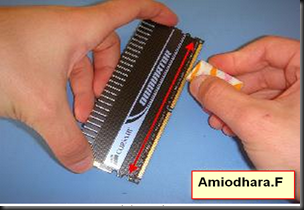

                                             Removing bad contacts-1
Image: Clean the memory module edge contacts with an eraser.

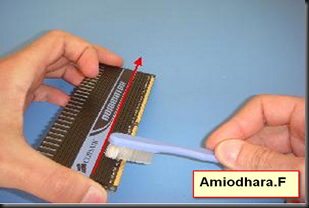

                                               Removing bad contacts-2
Image: Clean the memory module with brush.

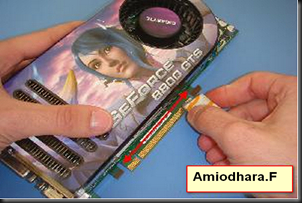

                                             Vedio card cleaning
Image: Clean the video card edge contacts with an eraser.

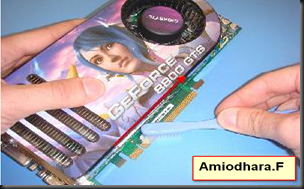

                                            Vedio card cleaning-1
Image: Clean the Video card edge contacts with Tooth brush.
Socket and Pins cleaning: If you have an Intel CPU based sockets such as 775, 1155, 1156, 1366 and similar CPUs, you can use eraser to clean its contacts and then use tooth brush wet in isopropyl alcohol. If your motherboard use pins then you should not use eraser lest you should broke the pins. In this case use only toothbrush wet in isopropyl alcohol. see the images bellow you will get the full notion about these.
Socket cleaning
Image-1: Cleaning sockets with eraser( only for sockets  775, 1155, 1156, 1366 and similar CPUs)
Socket cleaning-1
Image-2: Then clean them with a toothbrush wet in isopropyl alcohol

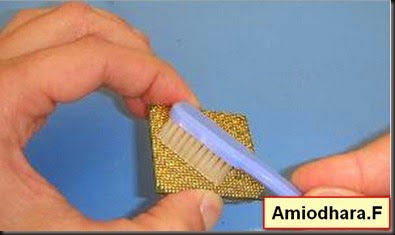

Pins cleaning
Image-3: Cleaning an AMD CPU with a toothbrush wet in isopropyl alcohol

After cleaning the the parts, we need to clean their sockets on the mother board. Never use eraser on the motherboard.
Socket cleaning-3
Image-4: Cleaning CPU socket with tooth brush wet in isopropyl alcohol

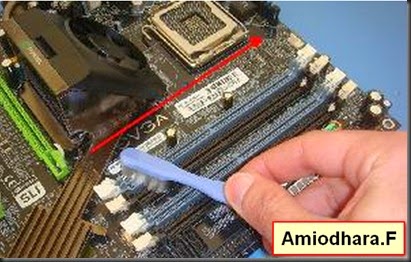

Socket cleaning-4
Image-5: Cleaning memory socket with tooth brush wet in isopropyl alcohol
Socket cleaning-5
Image-6: Cleaning video card slot with tooth brush wet in isopropyl alcohol

Cleaning The CMOS Memory:

Now we will learn how to clean CMOS Memory. The CMOS memory is a small memory located on the mother board in charge of storing computer configurations.  Generally it is done by changing the position of a jumper or by shorting two pads or two pins on the motherboard with a flat-tip screwdriver. In mother board you can see “Clear CMOS”, “CCMOS”, “CLRTC” written on it. See the Picture bellow:….

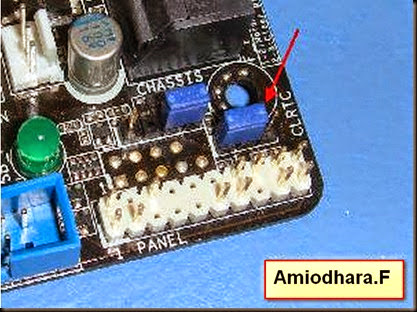

CMOS Cleaning
Image-1: Clear CMOS jumper(Change its position)

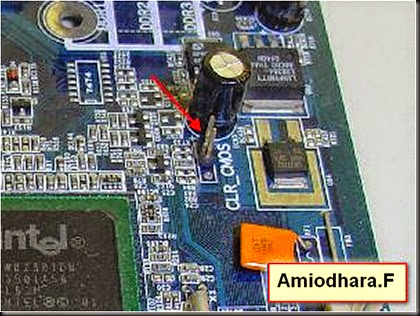

CMOS Cleaning1
Image-2: Clear CMOS pins( Short them with Flat tip screwdriver)

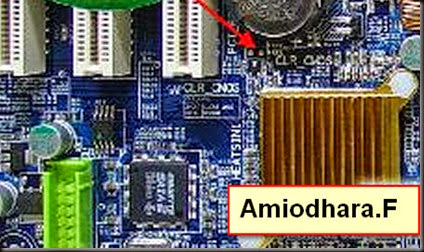

CMOS Cleaning2
Image-3: Clear CMOS pads (short them with flat trip screwdriver)
Please turn off you computer and remove the power cord from the wall. Move the position of the jumper, or short the tow pads or two pins with the screwdriver and hold it for two seconds. Now move the jumper back to its default position and turn on the computer again. Hope that you computer will turn on.
If this steps doesn’t start your computer, you need to do the following two steps:
  • Put all the parts of your computer  back in place.
  • Enter the mother board set up and reconfigure it.( Press F1 to enter setup and reconfigure it)
I hope this tutorial will solve your hard ware problems and helps to start your computer again.
